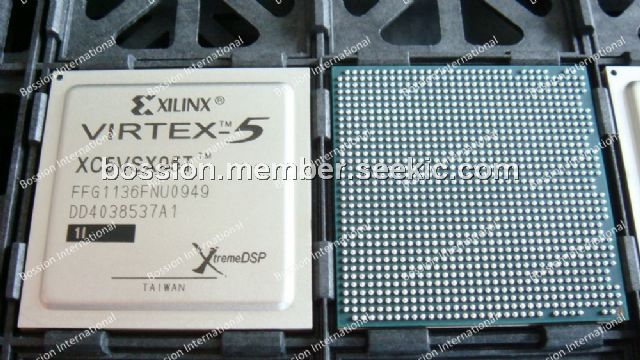

XC5VSX95T-1FFG1136I

Product Summary

The XC5VSX95T-1FFG1136I FPGA provides the newest most powerful features in the FPGA market. Using the second generation ASMBL (Advanced Silicon Modular Block) column-based architecture, the XC5VSX95T-1FFG1136I contains five distinct platforms (sub-families), the most choice offered by any FPGA family. Each platform contains a different ratio of features to address the needs of a wide variety of advanced logic designs. In addition to the most advanced, high-performance logic fabric, Virtex-5 FPGA XC5VSX95T-1FFG1136I contains many hard-IP system level blocks, including powerful 36-Kbit block RAM/FIFOs, second generation 25 x 18 DSP slices, SelectIO technology with built-in digitally controlled impedance, ChipSync source-synchronous interface blocks, system monitor functionality, enhanced clock management tiles with integrated DCM (Digital Clock Managers) and phase-locked-loop (PLL) clock generators, and advanced configuration options.

Parametrics

XC5VSX95T-1FFG1136I absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to 1.1 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF, Input reference voltage –0.5 to 3.75 V; (6)TSTG, Storage temperature (ambient): –65 to 150 ℃; (7)TSOL, Maximum soldering temperature: +220 ℃; (8)TJ, Maximum junction temperature: +125 ℃.

Features

XC5VSX95T-1FFG1136I features: (1)Five platforms LX, LXT, SXT, TXT, and FXT; (2)Cross-platform compatibility; (3)Most advanced, high-performance, optimal-utilization, FPGA fabric; (4)36-Kbit block RAM/FIFOs; (5)High-performance parallel SelectIO technology; (6)Advanced DSP48E slices; (7)Flexible configuration options; (8)System Monitoring capability on all devices; (9)Integrated Endpoint blocks for PCI Express Designs; (10)Tri-mode 10/100/1000 Mb/s Ethernet MACs; (11)RocketIO GTP transceivers 100 Mb/s to 3.75 Gb/s; (12)RocketIO GTX transceivers 150 Mb/s to 6.5 Gb/s; (13)PowerPC 440 Microprocessors; (14)65-nm copper CMOS process technology; (15)1.0V core voltage; (16)High signal-integrity flip-chip packaging available in standard or Pb-free package options.

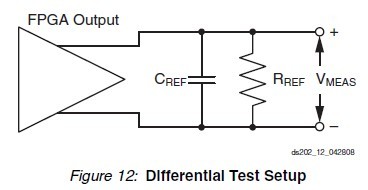

Diagrams
