Product Summary
The EP2C5F256I8N is a single-device, high-speed enhanced configuration device for very high-density FPGAs. The core of EP2C5F256I8N is divided into two major blocks: a configuration controller and a flash memory. The flash memory is used to store configuration data for systems made up of one or more Altera FPGAs.
Parametrics
EP2C5F256I8N absolute maximum ratings: (1)Supply voltage With respect to ground: -0.2 to 4.6 V; (2)DC input voltage With respect to ground: -0.5 to 3.6 V; (3)DC VCC or ground current: 100 mA; (4)DC output current, per pin: -25 to 25 mA; (5)Power dissipation: 360 mW; (6)Storage temperature No bias: -65 to 150 ℃; (7)Ambient temperature Under bias: -65 to 135 ℃; (8)Junction temperature Under bias: 135 ℃.
Features
EP2C5F256I8N features: (1)Single-chip configuration solution for AlteraR ACEXR 1K, APEX. 20K (including APEX 20K, APEX 20KC, and APEX 20KE), APEX II, ArriaR GX, CycloneR, Cyclone II, FLEXR 10K (including FLEX 10KE and FLEX 10KA), Mercury., StratixR II, and Stratix II GX devices; (2)Contains 4-, 8-, and 16-Mbit flash memories for configuration data storage: On-chip decompression feature almost doubles the effective configuration density; (3)Standard flash die and a controller die combined into single stacked chip package; (4)External flash interface supports parallel programming of flash and external processor access to unused portions of memory: Flash memory block/sector protection capability via external flash interface, Supported in EPC16 and EPC4 devices.

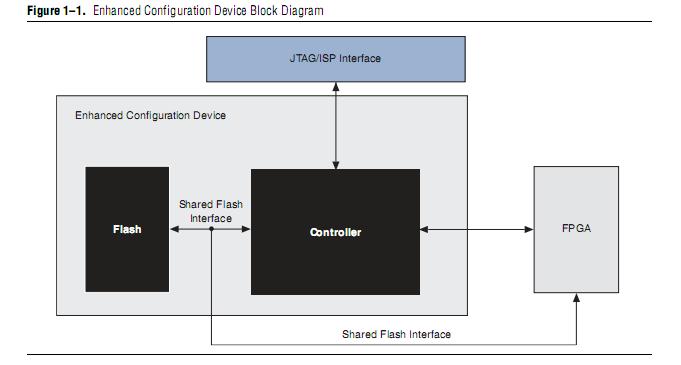

Diagrams
