Product Summary
The K7A323630C-PC20 is a 37,748,736-bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based System.
Parametrics
K7A323630C-PC20 absolute maximum ratings: (1)Voltage on VDD Supply Relative to VSS, VDD: -0.3 to 4.6 V; (2)Voltage on VDDQ Supply Relative to VSS, VDDQ: VDD V; (3)Voltage on Input Pin Relative to VSS, VIN: -0.3 to VDD+0.3 V; (4)Voltage on I/O Pin Relative to VSS, VIO: -0.3 to VDDQ+0.3 V; (5)Power Dissipation, PD: 1.6 W; (6)Storage Temperature, TSTG: -65 to 150℃; (7)Operating Temperature, TOPR: 0 to 70℃; (8)Storage Temperature Range Under Bias, TBIAS: -10 to 85℃.
Features
K7A323630C-PC20 features: (1)Synchronous Operation; (2)2 Stage Pipelined operation with 4 Burst; (3)On-Chip Address Counter; (4)Self-Timed Write Cycle; (5)On-Chip Address and Control Registers; (6)VDD= 2.5 or 3.3V +/- 5% Power Supply; (7)5V Tolerant Inputs Except I/O Pins; (8)Byte Writable Function; (9)Global Write Enable Controls a full bus-width write; (10)Power Down State via ZZ Signal; (11)LBO Pin allows a choice of either a interleaved burst or a linear burst; (12)Three Chip Enables for simple depth expansion with No Data Contention only for TQFP ; 2cycle Enable, 1cycle Disable; (13)Asynchronous Output Enable Control; (14)ADSP, ADSC, ADV Burst Control Pins; (15)TTL-Level Three-State Output; (16)100-TQFP-1420A (Lead and Lead free package); (17)Operating in commeical and industrial temperature range.

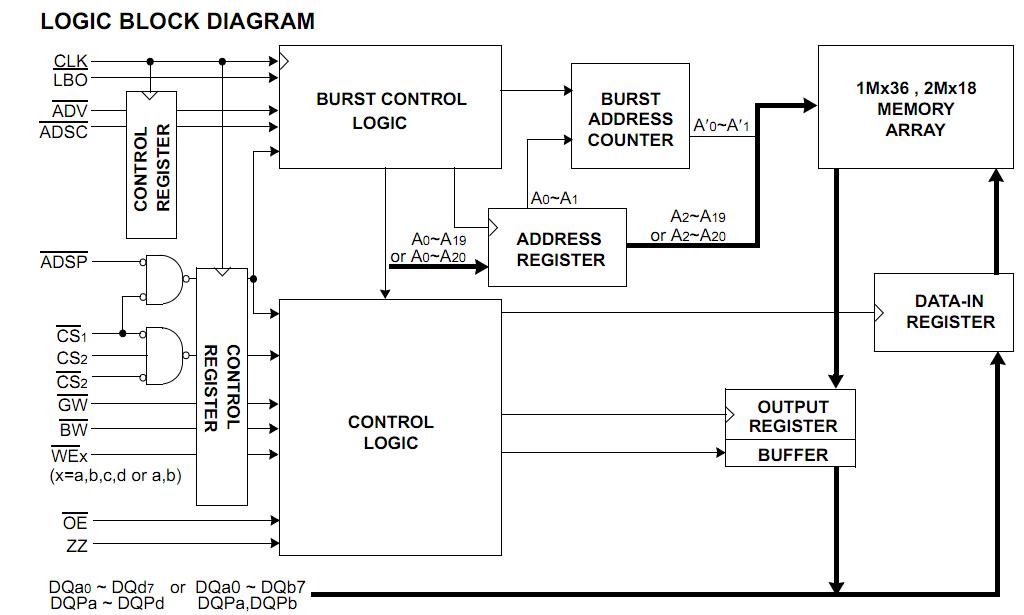

Diagrams
 |
