Product Summary

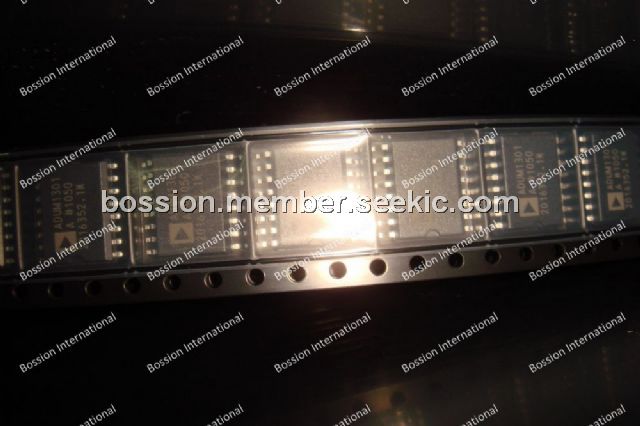

The ADUM1301ARWZ is a 3-channel digital isolator based on Analog Devices iCoupler technology. Combining high speed CMOS and monolithic transformer technology, the ADUM1301ARWZ provides outstanding performance characteristics superior to alternatives such as optocoupler devices. The applications of the ADUM1301ARWZ include General-purpose multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver, Industrial field bus isolation.

Parametrics

ADUM1301ARWZ absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Operating Temperature: –40 to +105 ℃; (3)Supply Voltages: –0.5 to +7.0 V; (4)Input Voltage: –0.5 to VDDI + 0.5 V; (5)Output Voltage: –0.5 to VDDO + 0.5 V; (6)Average Output Current, Per Pin3: Side 1: –23 to +23 mA, Side 2: –30 to +30 mA; (7)Common-Mode Transients: –100 to +100 kV/μs.

Features

ADUM1301ARWZ features: (1)Low power operation: 5 V operation, 1.2 mA per channel max @ 0 Mbps to 2 Mbps, 3.5 mA per channel max @ 10 Mbps, 32 mA per channel max @ 90 Mbps; (2)3 V operation: 0.8 mA per channel max @ 0 Mbps to 2 Mbps, 2.2 mA per channel max @ 10 Mbps, 20 mA per channel max @ 90 Mbps; (3)Bidirectional communication; (4)3 V/5 V level translation; (5)High temperature operation: 105℃; (6)High data rate: dc to 90 Mbps (NRZ); (7)Precise timing characteristics: 2 ns max pulse-width distortion, 2 ns max channel-to-channel matching.

Diagrams

ADUM1301ARWZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADUM1301ARWZ
ADUM1301ARWZ


IC DIGITAL ISOLATOR 3CH 16-SOIC

Data Sheet

0-141: $1.78
ADUM1301ARWZ-RL
ADUM1301ARWZ-RL


IC DGITAL ISOLATOR 3CH 16-SOIC

Data Sheet

0-1: $2.50
1-10: $2.24
10-25: $2.02
25-100: $1.83
100-250: $1.66
250-500: $1.49
