Product Summary
The XC3190A-4PQ208I is a Field Programmable Gate Array (FPGA). It provides a group of high-performance, high-density, digital integrated circuits. Its regular, extendable, flexible, user-programmable array architecture is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs). The development system provides schematic capture and auto place-and-route for design entry. Logic and timing simulation, and in-circuit emulation are available as design verification alternatives. The design editor of XC3190A-4PQ208I is used for interactive design optimization, and to compile the data pattern that represents the configuration program.
Parametrics
XC3190A-4PQ208I absolute maximum ratings: (1)Supply voltage relative to GND, VCC: –0.5 to +7.0V; (2)Input voltage with respect to GND, VIN: –0.5 to VCC+0.5V; (3)Voltage applied to 3-state output, VTS: –0.5 to VCC +0.5 V; (4)Storage temperature (ambient), TSTG: –65 to +150℃; (5)Maximum soldering temperature (10 s @ 1/16 in.), TSOL: +260℃; (6)Junction temperature plastic, TJ: +125℃; (7)Junction temperature ceramic, TJ: +150℃.
Features
XC3190A-4PQ208I features: (1)Complete line of four related Field Programmable Gate Array product families; (2)Ideal for a wide range of custom VLSI design tasks; (3)High-performance CMOS static memory technology; (4)Flexible FPGA architecture; (5)Unlimited reprogrammability; (6)Extensive packaging options; (7)Ready for volume production; (8)Complete Development System.

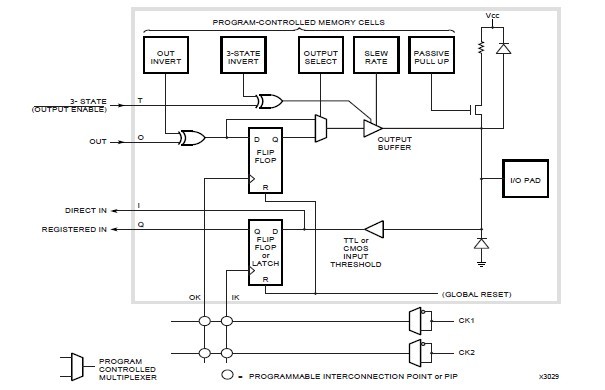

Diagrams
 |
