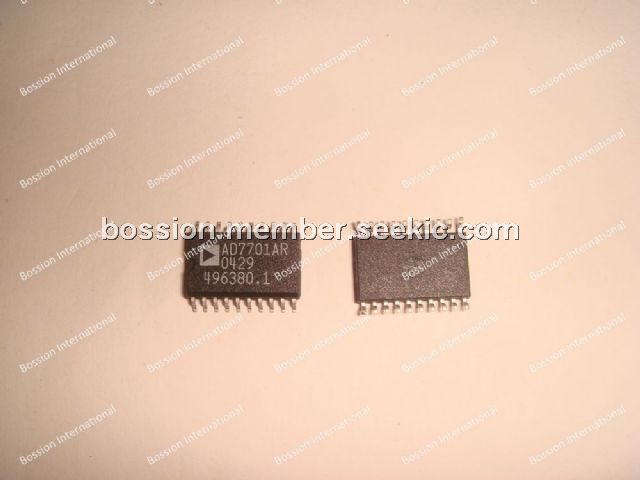

AD7701AR

16-Bit A/D Converter, 20-SOIC, 0.1 Hz to 10 Hz, 0 V to +2.5 V, 4 kSPS, ±10 mA, 450 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: AD7701AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Van Dannis's store

(Singapore)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-26

From Other Seller

Part Number:AD7701AR
US $1.00 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

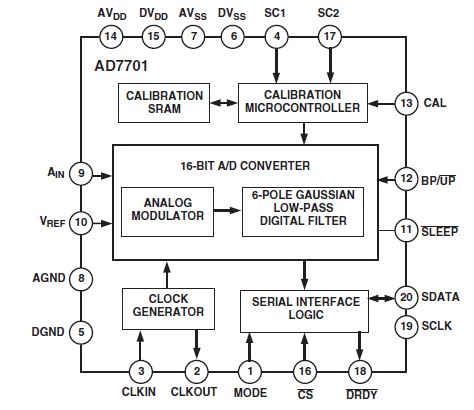

The AD7701AR is a 16-Bit A/D Converter. It uses a sigma-delta conversion technique. The analog input is continuously sampled by an analog modulator whose mean output duty cycle is proportional to the input signal. The modulator output of the AD7701AR is processed by an on-chip digital filter with a six-pole Gaussian response, which updates the output data register with 16-bit binary words at word rates up to 4 kHz. The applications of the AD7701AR include: Industrial Process Control, Weigh Scales, Portable Instrumentation, Remote Data Acquisition.

Parametrics

AD7701AR absolute maximum ratings: (1)DVDD to AGND: –0.3 V to +6 V; (2)DVDD to AVDD: –0.3 V to +0.3 V; (3)DVSS to AGND: +0.3 V to –6 V; (4)AVDD to AGND: –0.3 V to +6 V; (5)AVSS to AGND: +0.3 V to –6 V; (6)AGND to DGND: –0.3 V to +0.3 V; (7)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (8)Analog Input Voltage to AGND: AVSS – 0.3 V to AVDD + 0.3 V; (9)Input Current to Any Pin Except Supplies: ±10 mA; (10)Operating Temperature Range Commercial Plastic (A, B Versions): –40℃ to +85℃; (11)Storage Temperature Range: –65℃ to +150℃; (12)Lead Temperature (Soldering, 10 secs): 300℃; (13)Power Dissipation (Any Package) to 75℃: 450 mW; (14)Derates above 75℃ by: 10 mW/℃.

Features

AD7701AR features: (1)Monolithic 16-Bit ADC; (2)0.0015% Linearity Error; (3)On-Chip Self-Calibration Circuitry; (4)Programmable Low-Pass Filter: 0.1 Hz to 10 Hz Corner Frequency; (5)0 V to +2.5 V or ±2.5 V Analog Input Range; (6)4 kSPS Output Data Rate; (7)Flexible Serial Interface; (8)Ultralow Power.
