Product Summary
The MCF5282CVM66 is a microcontroller. It exhibits a 65mA leakage current on the VDDPLL supply, regardless of chip configuration.
Parametrics
MCF5282CVM66 absolute maximum ratings: (1)Supply Voltage VDD: – 0.3 to +4.0 V; (2)Clock Synthesizer Supply Voltage VDDPLL: – 0.3 to +4.0 V; (3)RAM Memory Standby Supply Voltage VSTBY: – 0.3 to + 4.0 V; (4)Flash Memory Supply Voltage3 VDDF: – 0.3 to +4.0 V; (5)Flash Memory Program / Erase Supply Voltage3 VPP: – 0.3 to + 6.0 V; (6)Analog Supply Voltage VDDA: – 0.3 to +6.0 V; (7)Analog Reference Supply Voltage VRH: – 0.3 to +6.0 V; (8)Analog ESD Protection Voltage VDDH: – 0.3 to +6.0 V; (9)Digital Input Voltage4 VIN: – 0.3 to + 6.0 V; (10)Analog Input Voltage VAIN: – 0.3 to + 6.0 V; (11)EXTAL pin voltage VEXTAL: 0 to 3.3 V; (12)XTAL pin voltage VXTAL: 0 to 3.3 V; (13)Instantaneous Maximum Current Single pin limit (applies to all pins) 3, 5, 6 ID: 25 mA.
Features
MCF5282CVM66 features: (1)Static Version 2 ColdFire variable-length RISC processor; (2)Static operation; (3)On-chip 32-bit address and data path; (4)Processor core and bus frequency up to 80 MHz; (5)Sixteen general-purpose 32-bit data and address registers; (6)ColdFire ISA_A with extensions to support the user stack pointer register, and four new instructions for improved bit processing; (7)Enhanced Multiply-Accumulate (EMAC) unit with four 48-bit accumulators to support 32-bit signal processing algorithms; (8)Illegal instruction decode that allows for 68K emulation support.

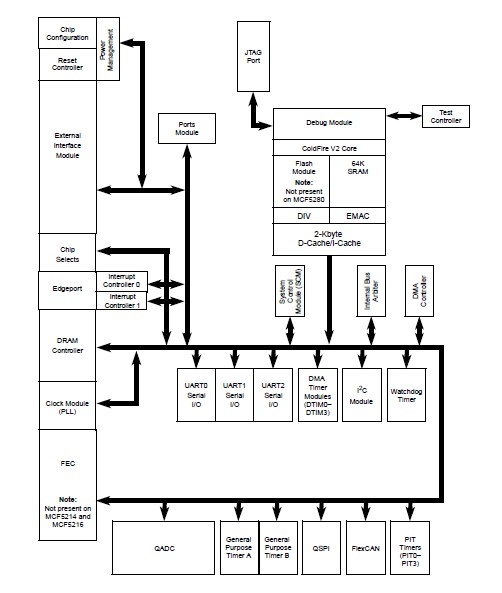

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCF5282CVM66 |
Freescale Semiconductor |
32-bit Microcontrollers (MCU) MCF5282 V2CORE 512KFLASH |
Data Sheet |
|
|
||||||||
 |
MCF5282CVM66J |
Freescale Semiconductor |
32-bit Microcontrollers (MCU) V2CORE 512K FLASH |
Data Sheet |
|
|
||||||||
