Product Summary
The EPM7064AETC144-4N is designed as one kind of low cost, high performance device that is fabricated with advanced CMOS technology, so it can be operates with a 3.3V supply voltage and provide 600 to 10,000 usable gates, ISP, pin to pin delays as fast as 4.5ns.
Parametrics
EPM7064AETC144-4N absolute maximum ratings: (1)Supply voltage: -0.5 to 4.6V;(2)DC input voltage: -2.0 to 5.75V;(3)DC output current, per pin: -25 to 25mA;(4)Storage temperature: -65 to 150℃;(5)Ambient temperature: -65 to 135℃;(6)Junction temperature: 135℃.
Features
EPM7064AETC144-4N features: (1)High performance, low cost CMOS EEPROM based programmable logic devices (PLDs) built on a MAX architecture;(2)Built in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990;(3)High density PLDs ranging from 600 to 10,000 usable gates;(4)4.5ns pin to pin logic delays with counter frequencies of up to 227.3 MHz;(5)Hot socketing support;(6)Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance;(7)Industrial temperature range;(8)PCI compatible;(9)Bus friendly architecture including programmable slew rate control;(10)Open drain output option;(11)Programmable security bit for protection of proprietary designs.

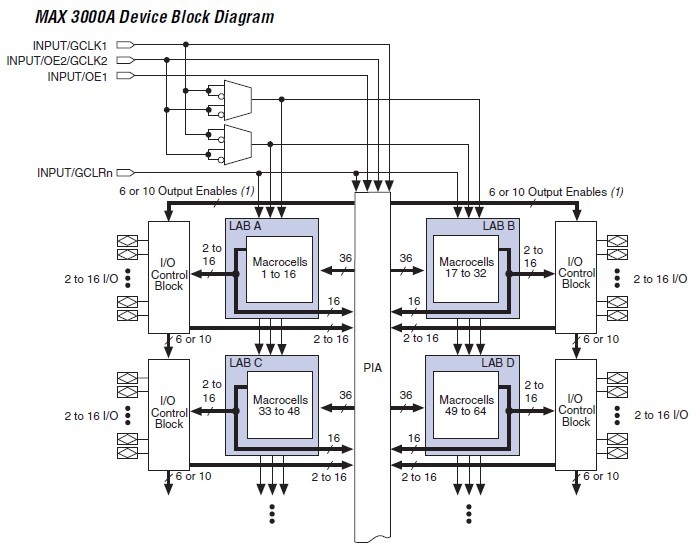

Diagrams
 |
