Product Summary
The EP3C25F256I7N is an FPGA from Altera Corporation.
Parametrics
EP3C25F256I7N absolute maximum ratings: (1)VCCINT, Supply voltage for internal logic: –0.5 to 1.8 V; (2)VCCIO, Supply voltage for output buffers: –0.5 to 3.9 V; (3)VCCA, Supply voltage (analog) for phase-locked loop (PLL)regulator: –0.5 to 3.75 V; (4)VCCD,_PLL Supply voltage (digital) for PLL: –0.5 to 1.8 V; (5)VI, DC input voltage: –0.5 to 3.95 V.
Features
EP3C25F256I7N features: (1)Supply voltage for internal logic: 1.15 v min, 1.2 v typ,1.25v max; (2)Supply voltage for output buffers, 3.3-V operation: 3.135 v min, 3.3v typ; 3.465 V max; (3)Supply voltage for output buffers, 3.0-V operation: 2.85 v min 3v typ, 3.15 V max; (4)Supply voltage for output buffers, 2.5-V operation: 2.375v min, 2.5v typ; 2.625 V max; (5)Supply voltage for output buffers, 1.8-V operation: 1.71v min, 1.8v typ,1.89 V max; (6)Supply voltage for output buffers, 1.5-V operation: 1.425 v min, 1.5v typ, 1.575 V max.

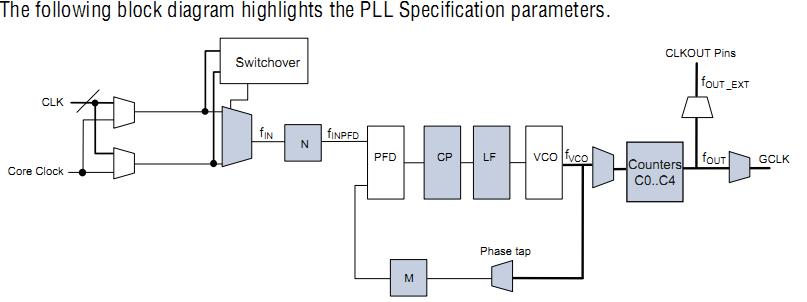

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP3C25F256I7N |
|
IC CYCLONE III FPGA 25K 256 FBGA |
Data Sheet |
|
|
||||||
