Product Summary

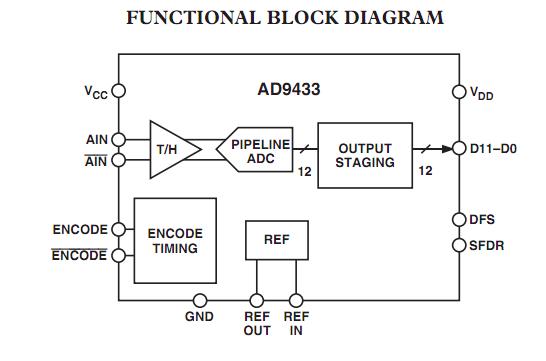

The AD9433BSQ-125 is a 12-bit monolithic sampling analog-to-digital converter with an on-chip track-and-hold circuit and is designed for ease of use. The AD9433BSQ-125 operates up to 125MSPS conversion rate and is optimized for outstanding dynamic performance in wideband and high IF carrier systems. The applications of the AD9433BSQ-125 include Cellular Infrastructure Communication Systems, 3G Single and Multicarrier Receivers, IF Sampling Schemes, Wideband Carrier Frequency Systems, Point to Point Radios, LMDS, Wireless Broadband, MMDS Base Station Units, Cable Reverse Path, Communications Test Equipment and Radar and Satellite Ground Systems.

Parametrics

AD9433BSQ-125 absolute maximum ratings: (1)VDD Voltage: –0.5 to +6.0 V; (2)VCC Voltage: –0.5 to +6.0 V; (3)Analog Input Voltage: –0.5 to VCC + 0.5 V; (4)Digital Input Voltage: –0.5 VCC + 0.5 V; (5)Digital Output Current: 20 mA; (6)Operating Temperature Range (Ambient): –40 to +85℃; (7)Maximum Junction Temperature: +150℃; (8)Storage Temperature Range (Ambient): –65 to +125℃.

Features

AD9433BSQ-125 features: (1)IF Sampling up to 350 MHz; (2)SNR = 67.5 dB, fIN up to Nyquist @ 105 MSPS; (3)SFDR = 83 dBc, fIN 70 MHz @ 105 MSPS; (4)SFDR = 72 dBc, fIN 150 MHz @ 105 MSPS; (5)2 V p-p Analog Input Range Option; (6)On-Chip Clock Duty Cycle Stabilization; (7)On-Chip Reference and Track/Hold; (8)SFDR Optimization Circuit; (9)Excellent Linearity: DNL = 0.25 LSB (Typ); INL = ±0.5 LSB (Typ); (10)750 MHz Full Power Analog Bandwidth; (11)Power Dissipation = 1.35 W Typical @ 125 MSPS; (12)5.0 V Analog Supply Operation; (13)2.5 V to 3.3 V TTL/CMOS Outputs.
