Product Summary

The XCS20-3TQ144C is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.

Parametrics

XCS20-3TQ144C absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to +7.0 V; (2)VIN Input voltage relative to GND: –0.5 to VCC +0.5 V; (3)VTS Voltage applied to 3-state output: –0.5 to VCC +0.5 V; (4)TSTG Storage temperature (ambient): –65 to +150 ℃; (5)TJ Junction temperature Plastic packages: +125 ℃.

Features

XCS20-3TQ144C features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCORE and LogiCORE predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost.

Diagrams

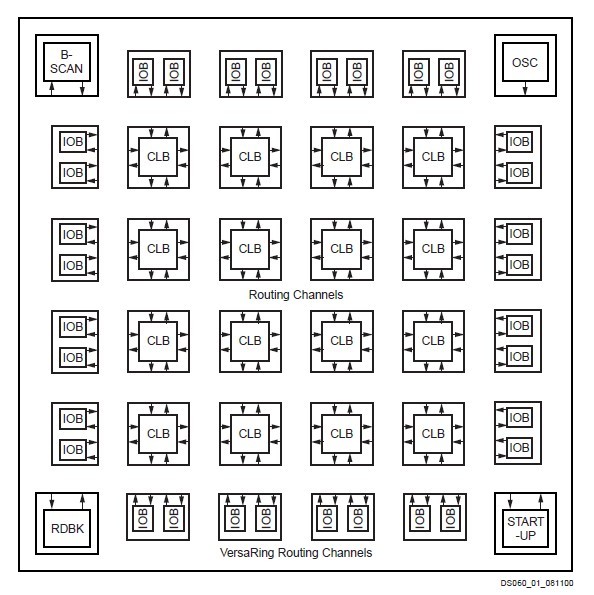

XCS20-3TQ144C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XCS20-3TQ144C
XCS20-3TQ144C


IC FPGA 5V C-TEMP 144-TQFP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XCS20 and XCS20XL
XCS20 and XCS20XL

Other


Data Sheet

Negotiable
XCS20-3PQ208C
XCS20-3PQ208C


IC FPGA 5V C-TEMP 208-PQFP

Data Sheet

Negotiable
XCS20-3PQ208I
XCS20-3PQ208I


IC FPGA 5V I-TEMP 208-PQFP

Data Sheet

Negotiable
XCS20-3TQ144C
XCS20-3TQ144C


IC FPGA 5V C-TEMP 144-TQFP

Data Sheet

Negotiable
XCS20-3TQ144I
XCS20-3TQ144I


IC FPGA 5V I-TEMP 144-TQFP

Data Sheet

Negotiable
XCS20-3VQ100C
XCS20-3VQ100C


IC FPGA 5V C-TEMP 100-VQFP

Data Sheet

Negotiable
