Product Summary

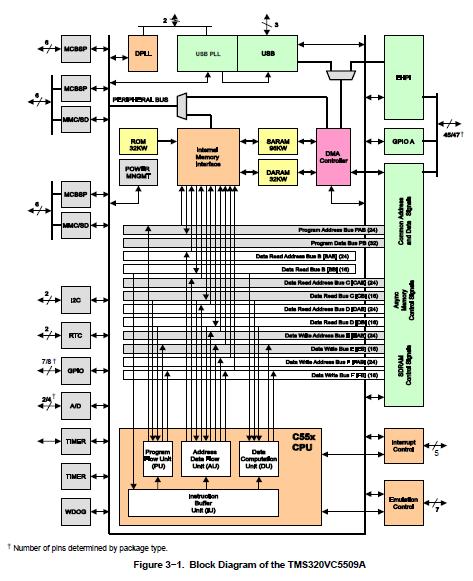

The TMS320VC5509PGE31 is a fixed-point digital signal processor. It is based on the TMS320C55x DSP generation CPU processor core. The C55x DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU of the TMS320VC5509PGE31 supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses of TMS320VC5509PGE31 provides the ability to perform up to three data reads and two data writes in a single cycle.

Parametrics

TMS320VC5509PGE31 absolute maximum ratings: (1)Supply voltage I/O range, DVDD: -0.3 V to 4.0 V; (2)Supply voltage core range, CVDD: -0.3 V to 2.0 V; (3)Input voltage range, VI: -0.3 V to 4.5 V; (4)Output voltage range, VO: -0.3 V to 4.5 V; (5)Operating case temperature range, TC: -40℃ to 85℃; (6)Storage temperature range, Tstg: -55℃ to 150℃.

Features

TMS320VC5509PGE31 features: (1)High-Performance, Low-Power, Fixed-Point TMS320C55x Digital Signal Processor; (2)128K x 16-Bit On-Chip RAM, Composed of: 64K Bytes of Dual-Access RAM (DARAM) 8 Blocks of 4K × 16-Bit, 192K Bytes of Single-Access RAM (SARAM) 24 Blocks of 4K × 16-Bit; (3)64K Bytes of One-Wait-State On-Chip ROM (32K × 16-Bit); (4)8M × 16-Bit Maximum Addressable External Memory Space (Synchronous DRAM); (5)Programmable Low-Power Control of Six Device Functional Domains; (6)On-Chip Scan-Based Emulation Logic; (7)2.7-V – 3.6-V I/O Supply Voltage; (8)1.6-V Core Supply Voltage.
