Product Summary

The ADUM1201ARZ is a dual-channel digital isolator based on Analog Devices’iCoupler technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices. The applications of the ADUM1201ARZ include Size-critical multichannel isolation, SPI interface/data converter isolation , RS-232/RS-422/RS-485 transceiver isolation, Digital field bus isolation.

Parametrics

ADUM1201ARZ absolute maximum ratings: (1)Storage Temperature, TST: -55 to 150℃; (2)Ambient Operating Temperature, TA: -40 to 105℃; (3)Supply Voltages, VDD1, VDD2: -0.5 to 7.0 V; (4)Input Voltage, VIA, VIB: -0.5 to VDDI + 0.5 V; (5)Output Voltage, VOA, VOB: -0.5 to VDDO + 0.5 V; (6)Average Output Current, per Pin3, IO: -35 to 35 mA; (7)Common-Mode Transients: -100 to +100 kV/μs.

Features

ADUM1201ARZ features: (1)Narrow body SOIC 8-lead package; (2)Low power operation; (3)Bidirectional communication; (4)3 V/5 V level translation; (5)High temperature operation: 105℃; (6)High data rate: dc to 25 Mbps (NRZ); (7)Precise timing characteristics; (8)High common-mode transient immunity: > 25 kV/μs; (9)Safety and regulatory approvals.

Diagrams

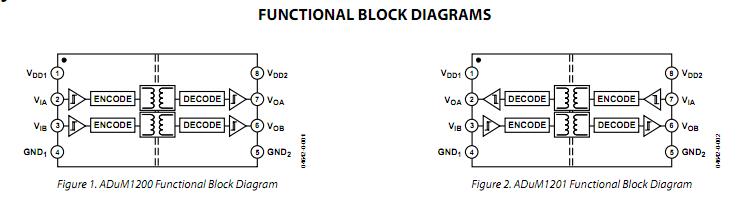

ADUM1201ARZ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADUM1201ARZ
ADUM1201ARZ


IC DIGITAL ISOLATOR 2CH 8-SOIC

Data Sheet

0-196: $1.33
ADUM1201ARZ-RL7
ADUM1201ARZ-RL7


IC ISOLATOR DIGITAL DUAL 8-SOIC

Data Sheet

0-1: $1.87
1-10: $1.67
10-25: $1.50
25-100: $1.37
100-250: $1.24
250-500: $1.11
