Product Summary
The JS28F160B3BD70 is an Advanced Boot Block Flash Memory (B3) device (hereafter referred to as the B3 flash memory device). The B3 flash memory device is optimized for portable, low-power, systems. The JS28F160B3BD70 features 1.65 V to 2.5 V or 2.7 V to 3.6 V I/Os, and a low VCC/VPP operating range of 2.7 V to 3.6 V for Read, Program, and Erase operations. The B3 device is also capable of fast programming at 12 V.
Parametrics
JS28F160B3BD70 absolute maximum ratings: (1)Extended Operating Temperature, During Read: –40 to +85℃; (2)During Block Erase and Program :–40 to +85℃; (3)Temperature under Bias: –40 to +85℃; (4)Storage Temperature –65 to +125℃; (5)Voltage On Any Pin (except VCC and VPP) with Respect to GND: –0.5 V to +3.7 V; (6)VPP Voltage (for Block Erase and Program) with Respect to GND: –0.5 V to +13.5 V; (7)VCC and VCCQ Supply Voltage with Respect to GND: –0.2 V to +3.6 V; (8)Output Short Circuit Current: 100 mA.
Features
JS28F160B3BD70 features: (1)Flexible SmartVoltage Technology; (2)High Performance: 2.7 V – 3.6 V: 70 ns max access time; (3)Optimized Block Sizes: Eight 8-KB blocks for data, top or bottom locations; Up to 127 x 64-KB blocks for code; (4)Block Locking: VCC-level control through Write Protect WP#; (5)Low Power Consumption; (6)Absolute Hardware-Protection; (7)Extended Temperature Operation; (8)Automated Program and Block Erase; (9)Intel Flash Data Integrator Software; (10)Extended Cycling Capability; (11)Automatic Power Savings Feature; (12)Standard Surface Mount Packaging; (13)Density and Footprint Upgradeable for common package; (14)ETOX VIII (0.13 μm) Flash Technology.

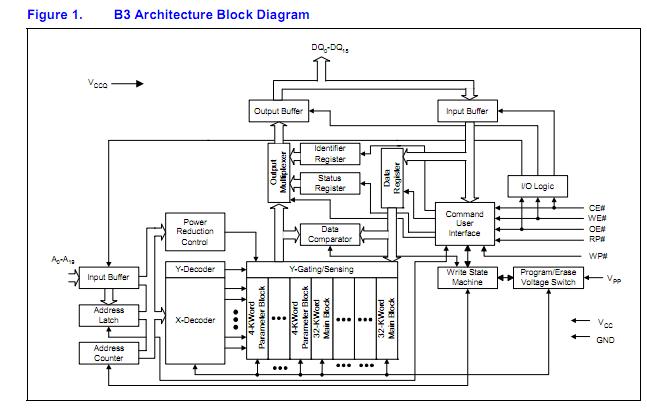

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

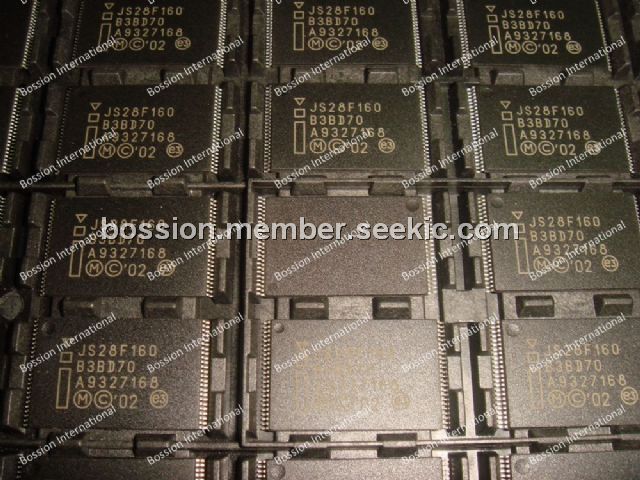

JS28F160B3BD70 |
IC FLASH 16MBIT 70NS 48TSOP |
Data Sheet |
Negotiable |
|
||||||||
