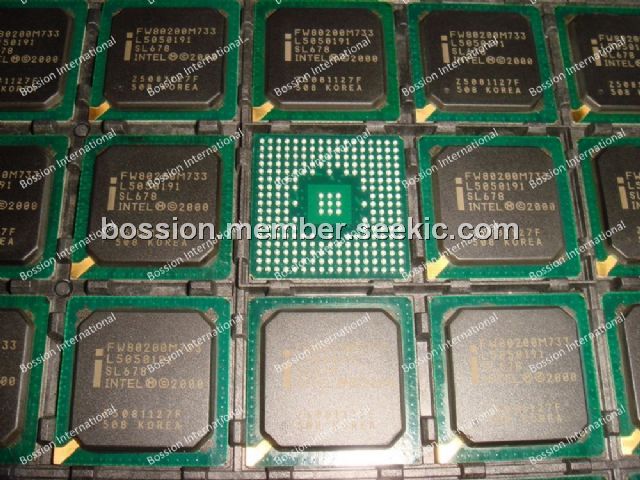

FW80200M733

Product Summary

The FW80200M733 is a processor. Its processor technology is compliant with the ARM Version 5TE instruction set architecture (ISA). The FW80200M733 is designed with Intel state-of-the-art 0.18 micron production semiconductor process technology. This process technology, along with the compactness of the ARM RISC ISA, enables the FW80200M733 to operate over a wide speed/power range, producing industry-leading mW/MIPS performance.

Parametrics

FW80200M733 absolute maximum ratings: (1)Storage Temperature: –55 to + 125℃; (2)Case Temperature Under Bias: 0 to + 90℃; (3)Supply Voltage VCC wrt. VSS: 2.1V; (4)Supply Voltage VCCP wrt. VSS: 5.0V; (5)Supply Voltage VCCA wrt. VSS: 2.1V; (6)Voltage on Any Ball wrt. VSS:–0.5 V to VCCP + 0.5 V.

Features

FW80200M733 features: (1)High Performance Processor based on Intel XScale Microarchitecture: 7-8 stage Intel Superpipelined Technology; 32-Entry Instruction Memory Management Unit; 32-Entry Data Memory Management Unit; 32 KByte, 32-way Set Associative Instruction Cache; 32 KByte, 32-way Set Associative Data Cache; 2 KByte, 2-way Set Associative Mini-Data Cache; 128-Entry Branch Target Buffer; 8-Entry Write Buffer; 4-Entry Fill and Pend Buffers; (2)Intel Dynamic Voltage Management: Core Voltage Range: 0.95 V to 1.55 V; Internal Clock Scalable by Software; Input Clock: 33-66 MHz; (3)ARM Version 5TE Compliant; (4)Application-Code Compatible with Intel StrongARM SA-110; (5)Power Management: Core Power is ~500mW at 600MHz; Core Voltage Operation Down to 0.95 V; Idle and Sleep Modes; (6)Intel Media Processing Technology: Multiply-Accumulate Coprocessor; (7)High Performance External Bus: 64- or 32-Bit Data Interface; Optional ECC Protection; Frequency up to 100 MHz; Asynchronous to Processor Clock; (8)Performance Monitoring Unit: Two 32-Bit Event Counters; One 32-Bit Clock Counter; Monitors Occurrence and Duration Events; (9)Debug Unit: Accessible through JTAG Port; Hardware Breakpoints; 256-Entry Trace Buffer; (10)80200T can operate at an ambient temperature range of -40 to +85℃.

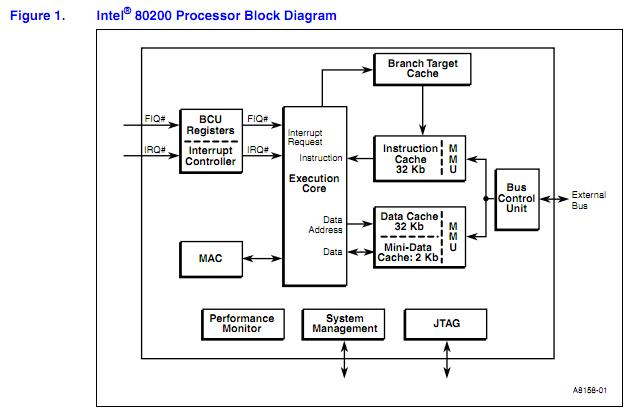

Diagrams
