Product Summary

The EP1S80F1020C6 is a Lowest-Cost FPGA. It provides the benefits of programmable logic at price points competitive with ASICs and ASSPs. Based on extensive input from hundreds of customers, the EP1S80F1020C6 was built from the ground up for low cost. The EP1S80F1020C6 provides a high-volume solution with application-focused features such as embedded memory, external memory interfaces, and clock management circuitry.

Parametrics

EP1S80F1020C6 absolute maximum ratings: (1)Core Voltage: 1.5V; (2)I/O Voltage: 3.3V, 2.5V, 1.8V, 1.5V; (3)Process Technology: 130-nm; (4)Logic Elements: 2,910 to 20,060; (5)User I/O Pins: 65 to 301; (6)DSP Implementation: Logic Elements; (7)M4K RAM Blocks: 13 to 64; (8)Phase-Locked Loops (PLLs): 1 to 2; (9)I/O Standards Support: LVTTL, LVCMOS, PCI, SSTL, LVDS, RSDS; (10)External Memory Interfaces: SDR, DDR; (11)Speed Grades: -6, -7, -8.

Features

EP1S80F1020C6 features: (1)Embedded Memory; (2)Embedded 18x18 Multipliers; (3)I/O Standard Support; (4)External Memory Interfaces; (5)Clock Management Circuitry; (6)Nios II Embedded Processors; (7)Intellectual Property (IP); (8)Serial Configuration Devices.

Diagrams

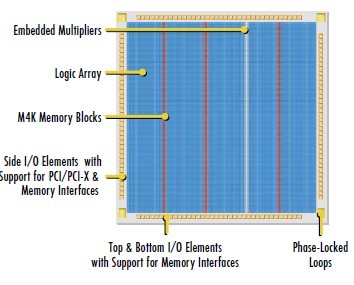

EP1S80F1020C6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP1S80F1020C6
EP1S80F1020C6


IC STRATIX FPGA 80K LE 1020-FBGA

Data Sheet

0-8: $4,603.51
EP1S80F1020C6N
EP1S80F1020C6N


IC STRATIX FPGA 80K LE 1020-FBGA

Data Sheet

0-8: $4,185.01
